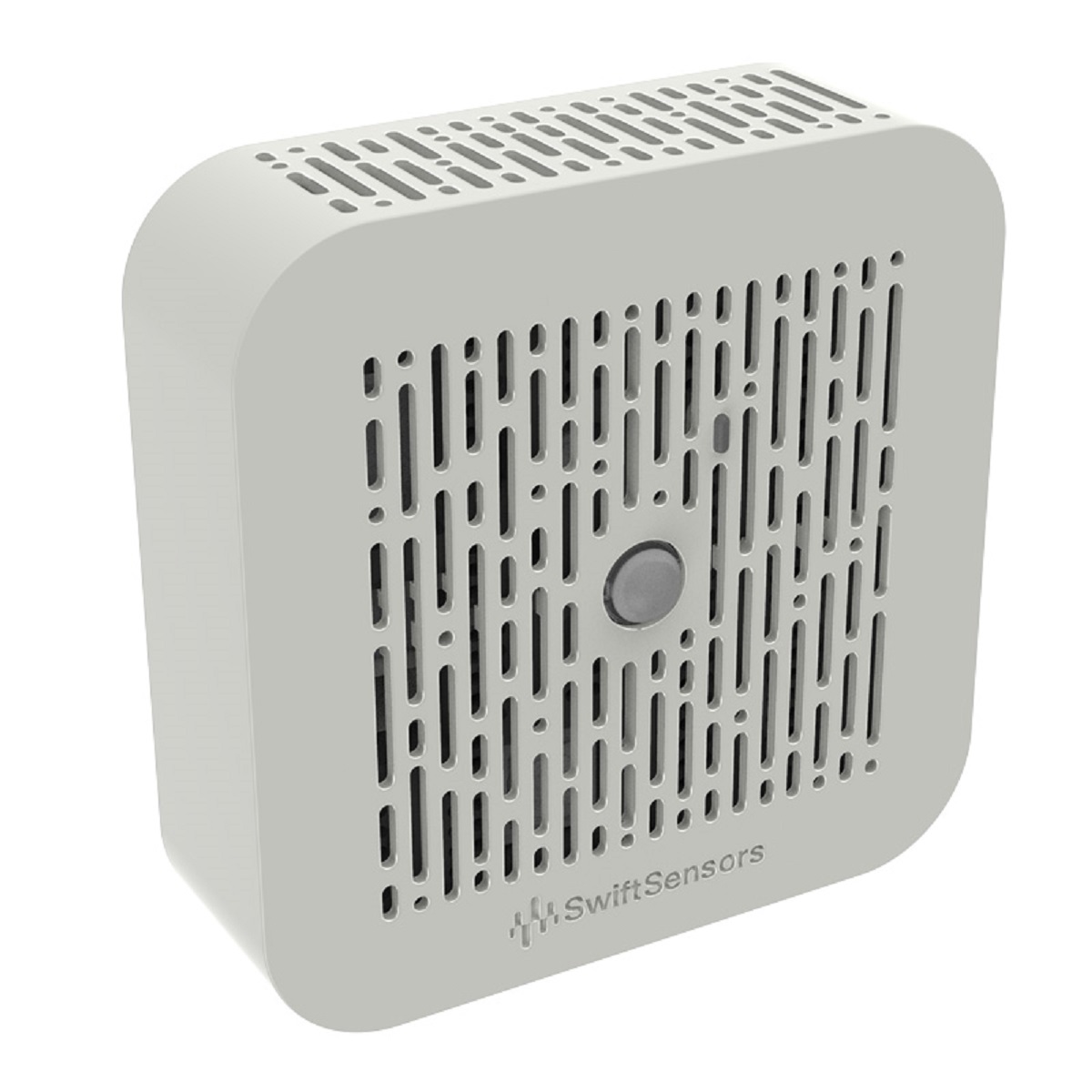

Indoor Air Quality Sensor
SS3-901
The Indoor Air Quality Sensor monitors a wide range of environmental conditions to ensure the health, safety, and productivity of your students, employees, and customers. The sensor continuously measures key Health and Comfort parameters, such as temperature, humidity, TVOC, CO, CO2, and the presence of harmful particulate matter. The sensor also detects smoking and vaping, motion, noise, and physical tampering for areas where deterrence and enforcement are required. View real-time analytics, download compliance reports, and receive instant mobile alerts on any device.
A Swift Sensors system requires the purchase of at least one gateway, at least one sensor, and a monitoring plan. Learn more.
Specifications

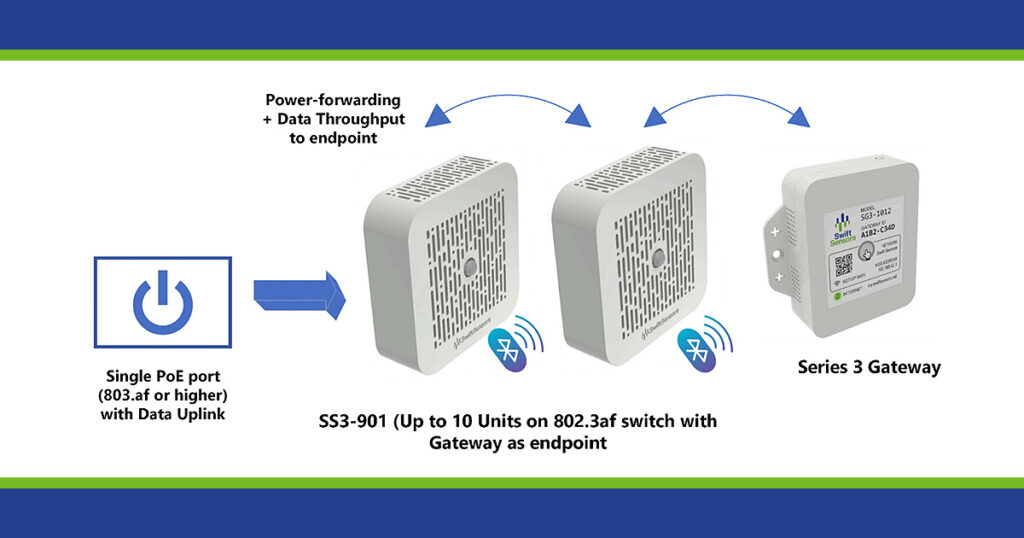

| Power Options | 1. DC Voltage: 12-24VDC 2. Power Over Ethernet (POE): 802.3af/at/PoE+ (Passive PoE Also Supported at 40-56VDC) 3. USB-C Power Adapter: 5.1VDC (110-230VAC Wall Adapter Included) |
|---|---|
| Backup Battery | 2 Hours of Uninterrupted Operation |
| Operating Voltage | 5VDC, 3.3VDC from various Input Sources |
| Average Current Consumption | 0.5W (Steady State), 0.9W (First Two Hours of Operation) |
| Operation Temperature | -10°C to +50°C (14°F to 122°F) |
| Storage Temperature | -10°C to +50°C (14°F to 122°F) |
| Operating Environment | Indoor use, 10-90% RH |
| Communication Protocol | BLE/BT5 2.4Ghz |
| Range | 300m (Line-of-Sight), 100m (Non Line-of-Sight) |
| Encryption | 128-Bit AES Encryption |
| LED | 1. Ethernet Port Solid Yellow, Solid Green (Power) 2. At Startup, Internal Green Flash Succession will initiate, 3s long |
| Find My Sensor | Command from Console to blink sensor LED |
| Weight | 180g (7oz) |

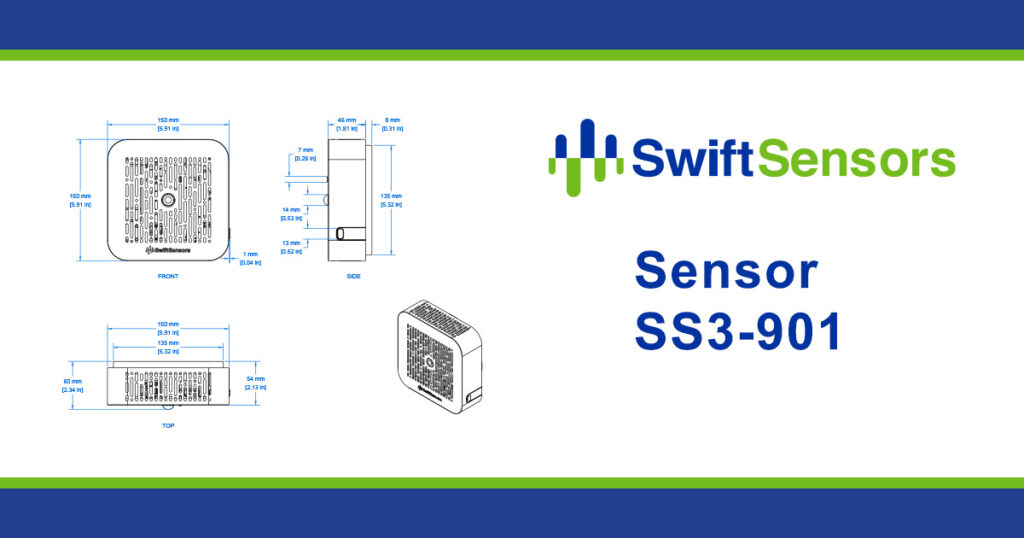

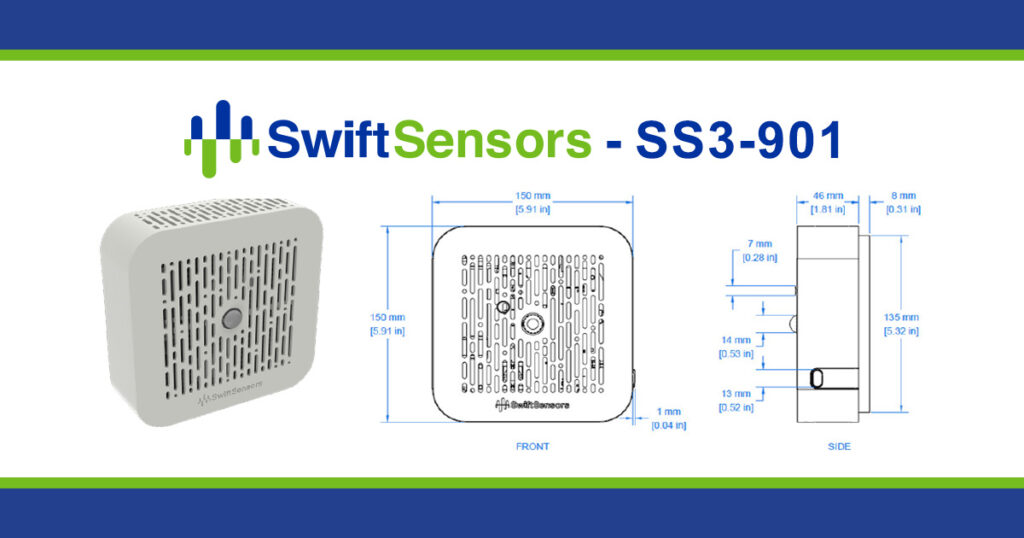

| Dimensions | 150mmL x 150mmH x 54mmD (Including Mounting Pegs + Plate) 5.9L x 5.9H x 2.1D |
| Mounting Plate Dimensions | 135mm Radius, 10mm Thickness, 5.3 Radius, 0.25 Thickness |
| Enclosure Material | ABS PA-765+ |
| Certifications | FCC ID: X8WBT840X, IC ID: 4100A-BT840X |
| EMC Compliance | FCC Part 15 Class B |
| Warranty | 2-year |
Request Quote
Features & Benefits
System Components
FAQ
A Swift Sensors system requires the purchase of at least one gateway, at least one sensor, and a monitoring plan.
- We offer over 30 types of wireless sensors. Each sensor is smaller than a credit card and has battery life of 6-8 years. The sensor transmits data via Bluetooth 5 (BLE5) and connects to the gateway with a push of a button.
- The gateway receives data from each sensor and then transmits the data to the cloud console via local ethernet, WiFi, or cellular network (optional module). Each gateway supports up to 150 sensors within a 500 foot radius.
- The monitoring plan is very simple. The fee is based on the number of sensors you deploy. You can pay monthly, annually, or multi-year. There are no contracts required. View real-time analytics, download compliance reports, and receive instant mobile alerts on any device.
The sensor range is generally 500 ft (150 m) depending on the facility infrastructure and equipment located between the sensor and the gateway. The sensors use the BLE5 wireless communication protocol which allows signal transmission through doors and walls constructed of standard building materials.
Each sensor uses two AAA lithium polymer batteries with an average lifespan of 6-8 years. Replacement batteries are readily available at hardware stores and various retail locations.
The monitoring plan is very simple. The fee is based on the number of sensors you deploy. You can pay monthly, annually, or multi-year. There are no contracts required.
The Swift Sensors Console is a robust cloud-based monitoring, alerts, and reporting platform viewable remotely on any device. The Console is used for hardware setup and system configuration. The Console presents analytics that provide trend analysis, historical documentation, compliance reporting, and deep insights into equipment performance, facility operations, and environmental conditions. The platform is customizable and adaptable to any industry with unparalleled ability to search, filter, sort and view critical measurement and performance data. Configurable instant alerts enable immediate corrective actions when significant events occur. Alerts can be sent to individuals or groups via SMS text, email, or voice.
The Swift Sensors monitoring, alerts, and reporting platform was developed and is maintained by industry experts with extensive experience in network security. Sensor to gateway communication utilizes BLE5 and 128-bit AES encryption. Gateway to cloud Console communication utilizes ethernet, WiFi, or cellular (optional module) and 256-bit AES encryption. Data is securely transmitted over Secure Sockets Layer (SSL) on port 443. The Swift Sensor network does not allow any outside communication. As a result, the Swift Sensor network is incredibly secure.
Swift Sensors only communicate with Swift Sensors gateways. Swift Sensors gateways only communicate with the Swift Sensors Console. The Swift Sensor network does not allow any outside communication. As a result, the Swift Sensor network is incredibly secure. The Swift Sensor Console, however, features a robust API which can be utilized to communicate with 3rd-party applications.
